I-WiFi Multi-Circuit Smart Power Meter PC341 | Isithombe Esivelele Sezigaba Ezi-3 Nezigaba Ezihlukanisiwe

Imitha Yamandla Ehlakaniphile Ye-WiFi Eneziyingi Eziningi PC341 | Izigaba Ezi-3 Nezigaba Ezihlukanisiwe

Isici Esiyinhloko:

I-PC341 iyimitha yamandla ehlakaniphile ye-WiFi yamasekethe amaningi eyenzelwe ukuqapha imithwalo eminingi kanye namasekethe amancane kuzo zonke izinhlelo zesigaba esisodwa, isigaba esihlukanisiwe, kanye nesigaba sesithathu. Ilinganisa izifunda eziphelele, ngesigaba ngasinye, kanye nezifika ku-16 kokubili ukusetshenziswa kwamandla kanye nokukhiqizwa. Ilungele i-BMS/EMS, ukuqapha i-solar PV, kanye nokuhlanganiswa kwe-MQTT.

Imodeli:I-PC 341-3M16S-W-TY

Ubukhulu:111.3L x 81.2W x 41.4H mm

Isisindo:415g (iyunithi eyinhloko)

Isitifiketi:I-CE, i-RoHS

Thumela Uphenyo Ukulanda i-Datasheet Ukulanda Kwesandla

Imininingwane Yomkhiqizo

Okukhethekile Okuyinhloko

Amathegi Omkhiqizo

Izici Eziyinhloko:

• Ipulatifomu Ehlakaniphile yeTuya. Isekela ukuxhumanisa ne-Amazon Alexa/Google Assistant/Apple Home/Home Assistant ukudala izimo zokwenza izinto ngokuzenzakalela.
• Ukuhlanganiswa kwesistimu, ukuxhumana kalula namanye amadivayisi ahlakaniphile, amaseva ezinkampani zangaphandle, amapulatifomu okuphatha amandla, njll. nge-MQTT API.
• Isekela izinhlelo zikagesi ezinezintambo ezine (480Y/277VAC) ezinesigaba esisodwa, ezihlukaniswe ngezigaba (120/240VAC), kanye nezigaba ezintathu.
• Iqapha ukusetshenziswa kwamandla endlini yonke kanye nama-sub-circuit noma imithwalo efinyelela ku-16 (isb., ama-light circuits, ama-water heater, ama-air conditioner, iziteshi zokushaja ze-EV, ama-PV inverters, njll.).
• Ukulinganiswa kwamandla aqondiswe kabili: Kusekela ukuqapha ukusetshenziswa kwamandla kanye nokukhiqizwa kwemigqa yomthwalo kanye nesekethe eyinhloko.
• Ukuqapha i-voltage ngesikhathi sangempela, ugesi, amandla kagesi, amandla asebenzayo, kanye nemvamisa yesigaba ngasinye kanye ne-sub-circuit.
• Buka idatha yomlando ngokusetshenziswa kwamandla kanye nokukhiqizwa kwawo (ngehora, nsuku zonke, masonto onke, nyanga zonke). Isekela ukuthunyelwa kwedatha yomlando (ngehora, nsuku zonke)
• Ukwakheka kwe-antenna yangaphandle kuthuthukisa ukuzinza kwesignali futhi kugwema izinkinga zokuvikela.

Umkhiqizo:

Isigaba Esihlukanisiwe (e-US)

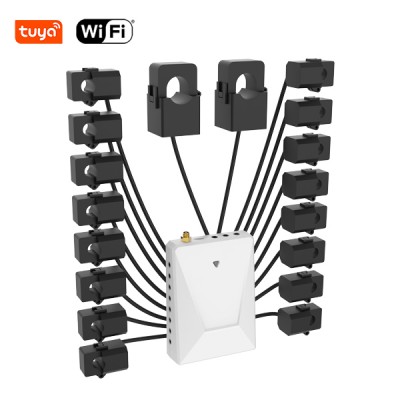

I-WIFI Multi-Circuit Energy Meter, isekela i-Split-phase yase-US, ene-2*200A Main CT+16*50A sub CT Clamp

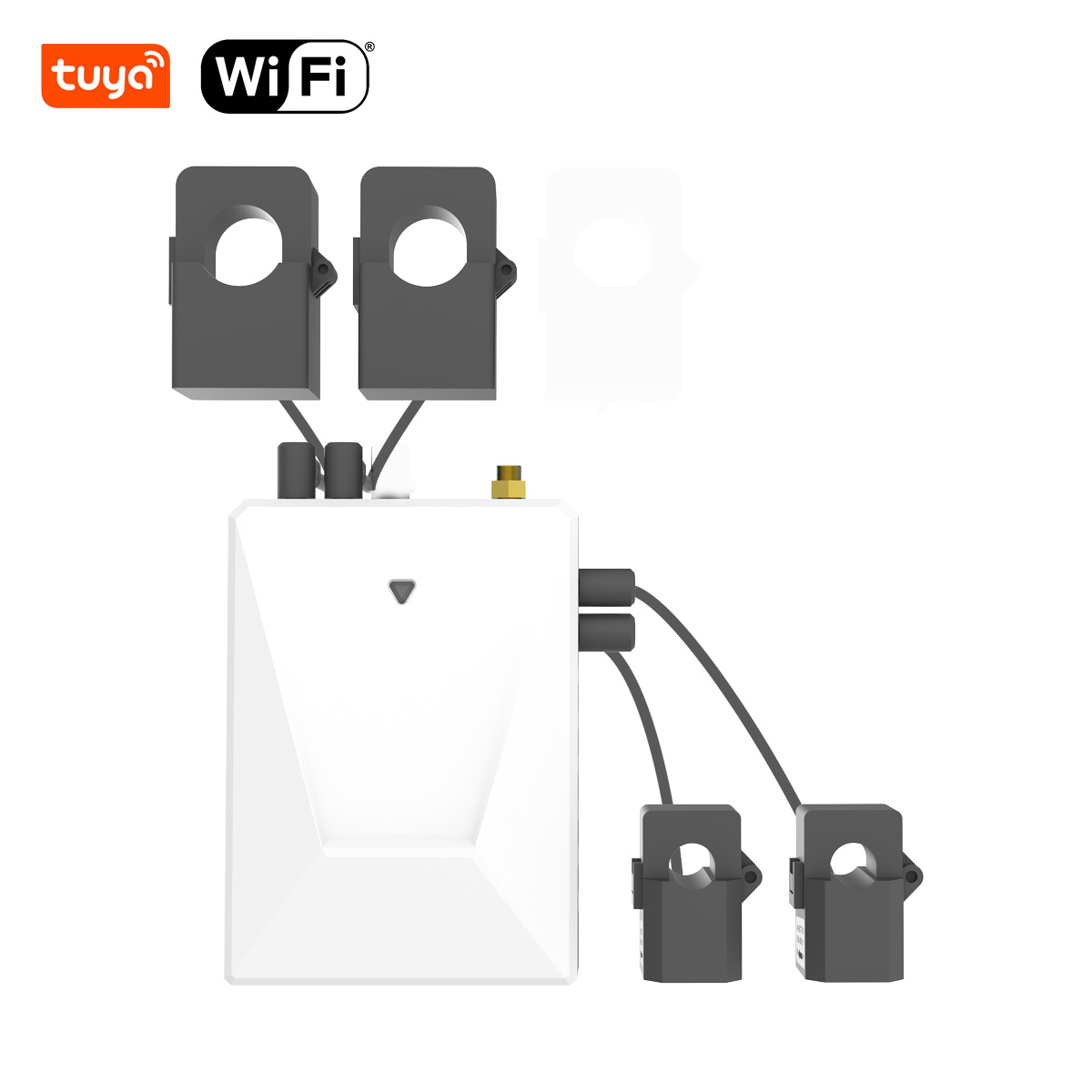

I-WIFI Multi-Circuit Power Meter, isekela i-Split-phase yase-US, ene-2 * 200A Main CT Clamp

I-PC341-2M16S-W

(2*200A I-Main CT &16*50A I-Sub CT)

I-PC341-2M-W

(2* 200A Main CT)

Izigaba Ezintathu (i-EU)

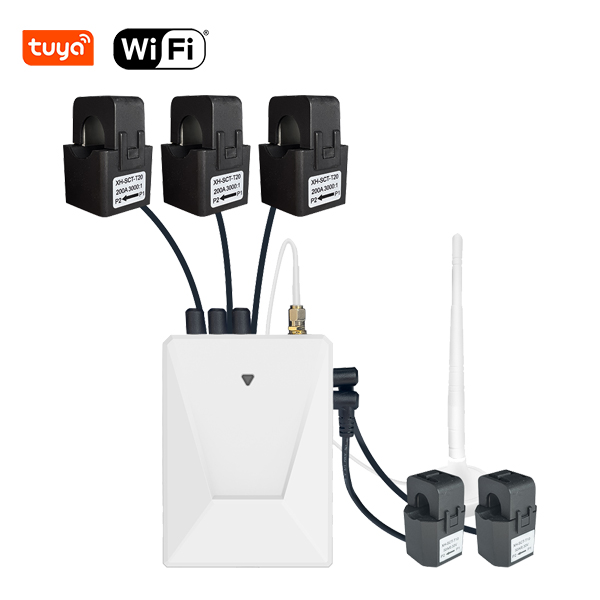

Imitha Yamandla E-WIFI Eneziyingi Eziningi, ene-3 * 200A Main CT Clamp, isekela izinhlelo zamandla zezigaba ezintathu ze-EU

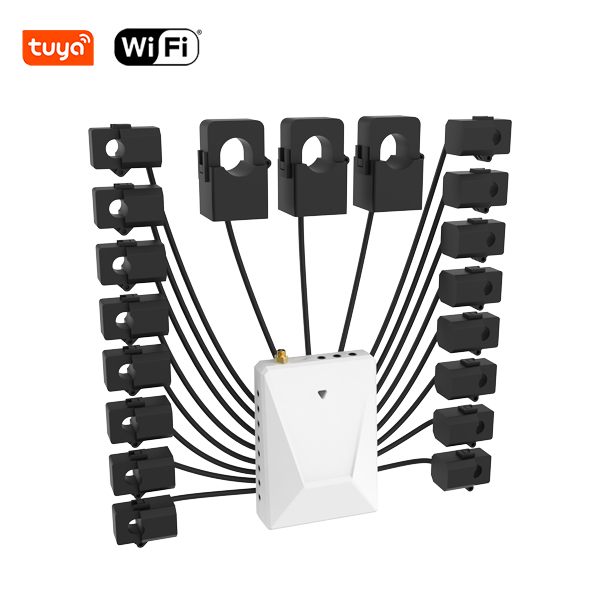

I-PC341-3M16S-W

(3*200A I-Main CT kanye ne-16*50A I-Sub CT)

I-PC341-3M-W

(3*200A I-CT Eyinhloko)

I-PC341 WI-FI Multi Circurt Energy Meter Wiring Diragram

Imitha yamandla amaningi ye-PC341— Izigaba Ezintathu (Izigaba A/B/C), Umthwalo Wesiteshi Esisodwa noma I-Inverter

I-PC341 Multi circurt energy meter-3-Phase-(ABC)-–-Umdwebo wocingo lwe-Single-Load-and-Inverter

Idayagramu yokuxhumanisa ye-PC341-WIFI-Multi-Circuit-Power-Meter-—-Phase-Split,-Phases-AB,-Inverter

Idayagramu yezintambo ze-wifi ye-PC341 Multi circurt enesigaba esisodwa, umugqa oyinhloko kanye nokuqapha umthwalo owodwa

Izicelo

• Amapulatifomu okuphatha amandla ahlakaniphile emakhaya nasezindaweni zokuhlala
• Ukushaja kwe-EV kanye nokusetshenziswa kwamandla elanga e-PV kanye nokuqapha ukukhiqizwa
• Ukulinganisa amandla okusebenza ngamasekethe amaningi kanye nomthwalo ongaphansi
• Ukuhlanganiswa nezinhlelo zokuphathwa kwamandla ebhizinisi (i-EMS/i-BMS)
• Ukulinganisa okungaphansi kwezakhiwo zokuhlala nezindawo zebhizinisi ezinabantu abaningi abaqashayo

Ividiyo (lungiselela inethiwekhi kanye nokuxhuma izintambo)

Imibuzo Evame Ukubuzwa:

Umbuzo 1: Yiziphi izinhlelo zamandla ezisekelwa yi-PC341?
A: Iyahambisana nezinhlelo ze-single-phase (120–240VAC), split-phase (120–240VAC, eNyakatho Melika), kanye nezinhlelo ze-4-wire ezine-phase ezintathu ezifika ku-480Y/277VAC.
Q2: Zingaki izisekhethi engaziqapha ngesikhathi esisodwa?
A: Ngaphezu komugqa oyinhloko kanye neSigaba A/B/C, i-PC341 isekela ukuqapha ama-sub-circuits afinyelela kwangu-16, okuvumela ukulandelela okuzimele kokukhanya, ama-outlet, ama-solar inverters, kanye neminye imithwalo.
Umbuzo 3: Ingabe iyakusekela ukuqapha amandla okubheka izinhlangothi zombili?
A: Yebo. I-PC341 isekela ukulinganisa okubili, okuvumela ukuqapha ngasikhathi sinye kokubili ukusetshenziswa kwamandla kanye nokukhiqizwa kwamandla kuzo zonke izigaba kanye nama-sub-circuits.
UMBUZO 4: Iyini isikhathi sokubika idatha?
A: Imitha yamandla ye-WiFi ilayisha idatha yokulinganisa ngesikhathi sangempela njalo ngemizuzwana eyi-15.

I-Wi-Fi	802.11 b/g/n @ 2.4GHz
I-BLE	Kokubhanqa i-Wi-Fi
Izici ze-RF	• Imvamisa yokusebenza: 2.4GHz • I-antenna yangaphandle edonsayo
I-Voltage Yokusebenza	90~277 Isivalo 50/60 Hz
Izinhlelo Ezisekelwayo	• I-single-Phase 240VAC line-neutral • Isigaba Esihlukanisiwe 120/240VAC • Izigaba ezintathu kuya ku-480Y/277VAC (Akukho ukuxhumana kwe-Delta/wye/Y/Star)
Ukunemba Kokulinganisa Okulinganiselwe	±2%
Umjikelezo Wokubika	Njalo ngemizuzwana eyi-15
I-Main Current Transformer (CT)	• Isixhumi somsindo esinezinsika ezintathu esingu-3.5mm esinekhebula elingu-1m • 200A (Okuzenzakalelayo) • 120A (Ongakukhetha) • 80A (Ongakukhetha)
I-Sub Current Transformer (CT)	• Isixhumi somsindo esinezinsika ezintathu esingu-2.5mm esinekhebula elingu-1m • 50A
Indawo yokusebenza	•Izinga lokushisa:-20 ℃~+55 ℃ •Umswakama: ≤ 90% awunciphisi
Uhlobo Lokukhweza	Ukufakwa kwesitimela odongeni noma e-DIN
Isitifiketi	CE
