Izici Eziyinhloko:
• Ihambisana ne-Tuya ngokusekelwa kokuzenzakalela okusekelwe kudatha yamandla kanye nokungeniswa/ukuthunyelwa kwegridi
• Isekela iphrothokholi ye-MQTT yokuhlanganiswa namapulatifomu e-IoT, i-EMS, kanye nezinhlelo ze-BMS
• Iyahambisana ne-Home Assistant yokuqapha amandla ahlakaniphile asekhaya okuthuthukisiwe
• Iyahambisana nezinhlelo ze-single-phase, split-phase (120/240VAC), kanye ne-3-phase wire 4 (480Y/277VAC)
• Ivumela ukuqapha kwangempela kwamandla asekhaya lonke kanye namasekethe akhethiwe kusetshenziswa ama-CT clamps
• Isekela ukuqapha amasekethe amaningi ukuze kuhlaziywe ukusetshenziswa kwamandla okuningiliziwe
• Ukulinganisa amandla okuqondiswa okubili kokulandelela ukusetshenziswa kwamandla kanye nokukhiqizwa kwawo
• Ilinganisa i-voltage, i-current, i-power factor, amandla asebenzayo, kanye nemvamisa ngesikhathi sangempela
• Ukuboniswa kwedatha yamandla omlando (usuku, inyanga, unyaka) kokubili ukusetshenziswa kanye nokukhiqiza
• Umklamo we-antenna yangaphandle uthuthukisa ukuzinza kwesignali kanye nokuthembeka kokuxhumana
Amacala Okusetshenziswa:
• Ukuqapha amandla okujikeleza okuningi emakhaya, emafulethini, kanye nezakhiwo ezincane zezentengiselwano
• Qapha izinhlelo ze-HVAC, amashaja e-EV, izifudumezi zamanzi, kanye neminye imithwalo kagesi
• Hlanganisa nezinhlelo zokusebenza zamandla ahlakaniphile noma izinhlelo zokwenza izinto ngokuzenzakalela ekhaya
• Ukuhlukaniswa kwamandla kanye namaphrojekthi okuhlola umthwalo
• Kusetshenziswa izinkampani zokulungisa amandla, abafaki belanga, kanye nabakhi bamaphaneli ahlakaniphile

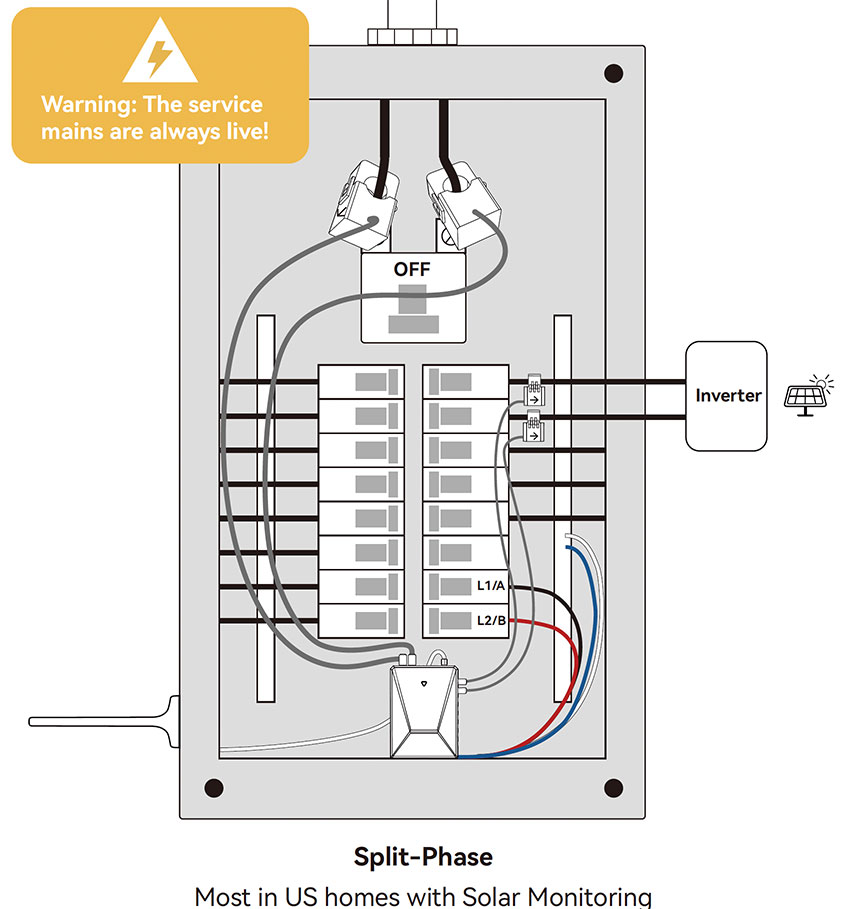

Isibonelo Sokusetshenziswa: Ukuqapha Amandla Elanga Ahlukaniswe Izigaba
I-PC341 ivumela ukuqapha ngesikhathi sangempela ezinhlelweni zesigaba esihlukanisiwe (120/240V), ezisetshenziswa kabanzi emakhaya aseNyakatho Melika. Ilandelela ukuphuma kwe-solar inverter, ukusetshenziswa kwegridi, kanye nezifunda eziningi zamagatsha isebenzisa ama-CT clamp, ihlinzeka ngokubonakala okucacile kokugeleza kwamandla ukuze kuphathwe kahle amandla okuhlala.
| Ukuxhumana | |
| I-Wi-Fi | • 802.11 b/g/n @2.4GHz |
| I-BLE | • Kokubhanqa |
| Izici ze-RF | • Imvamisa yokusebenza: 2.4GHz • I-antenna yangaphandle edonsayo |
| Imininingwane Yomzimba | |
| I-Voltage Yokusebenza (I-RMS yesigaba ngasinye) | • 90~277 Isivalo 50/60Hz |
| Izinhlelo Ezisekelwayo | • Isigaba Esisodwa • Isigaba Esihlukanisiwe • Izigaba ezintathu kuya ku-480Y/277VAC (Akukho ukuxhumana kwe-Delta/wye/Y/Star) |
| Ukunemba kwama-Voltmeter | • ±1% |
| Ukunemba kwe-Ammeters | • 200A CT: ±1% (2-200A) ，±2% (0-2A) • 50A CT: ±1%(1-50A），±2%）0 -1A） |
| Ubukhulu Bangaphakathi Be-Clamp | • 200A CT: Ø20mm • 50A CT: Ø10mm |
| Umjikelezo Wokubika | • Njalo ngemizuzwana eyi-15 |
| I-Main Current I-Transformer (CT) | • Isixhumi somsindo esinezinsika ezintathu esingu-3.5mm esinekhebula elingu-1m • 200A (Okuzenzakalelayo) • 120A (Ongakukhetha) • 80A (Ongakukhetha) |
| I-Sub Current I-Transformer (CT) | • Isixhumi somsindo esinezinsika ezintathu esingu-2.5mm esinekhebula elingu-1m • 50A |
| Indawo yokusebenza | • Izinga lokushisa: -20 ℃~+55 ℃ • Umswakama: ≤ 90% awunciphisi |
| Uhlobo Lokukhweza | • Ukufakwa kwesitimela odongeni noma e-DIN |
| Isitifiketi | •CE |
-
